GOB Anti-Collision Poster Screen: The Ultra-HD Traffic Magnet for Luxury Retail Windows
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Numéro de modèle: | P1.86, P2, P2.5 |
Conditions de paiement et expédition:
| Quantité de commande min: | 2 pièces |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Caisse en carton, caisse en bois, Flight Case |
| Délai de livraison: | 30 jours ouvrables après le paiement |
| Conditions de paiement: | L / C, T / T, Western Union, PayPal, Cash |
| Capacité d'approvisionnement: | 500 pièces par semaine |
|
Détail Infomation |
|||
| Angle de vue: | 140° | Niveau de protection: | IP43 |
|---|---|---|---|
| Matériau du câble: | Alliage d'aluminium | Méthode d'entretien: | Entretien avant |
| Niveau gris: | 14-16 bits | Température de fonctionnement: | -20 à 40 °C |
| Humidité de travail: | 10 %-65 %HR | Tension de fonctionnement: | AC220V, 50/60HZ |
| Mettre en évidence: | GOB Anti-Collision Poster Screen,Ultra-HD LED display for retail,Luxury retail window traffic magnet |
||
Description de produit

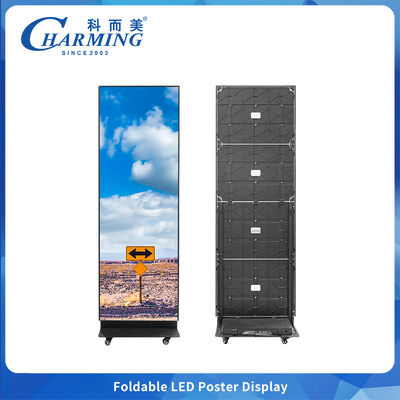

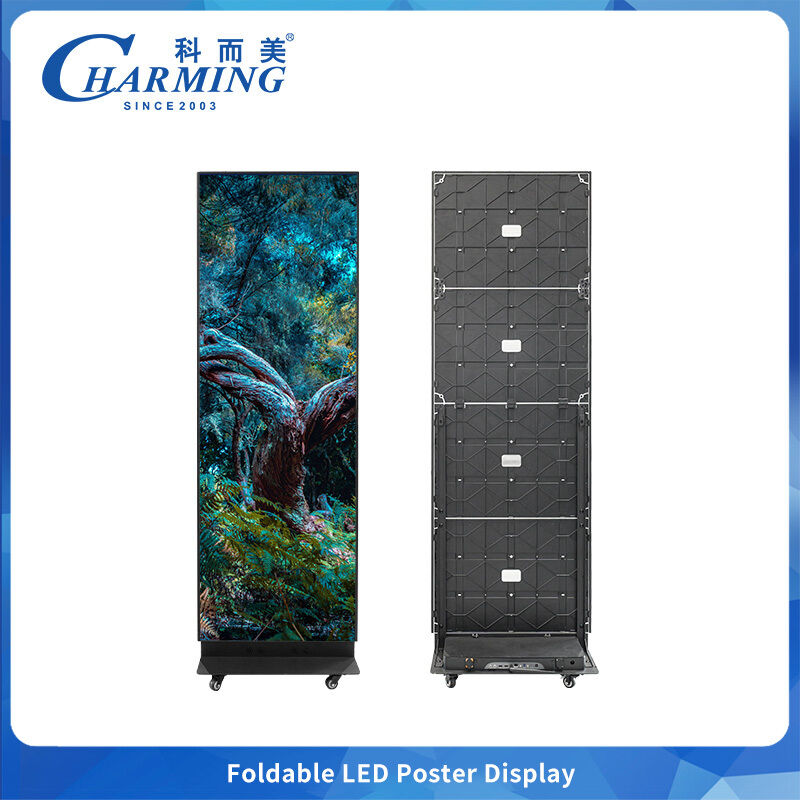

High Refresh Rate Foldable LED Poster Screen with GOB Technology and Intelligent Mobile Control
Advanced foldable LED poster screen featuring high refresh rate technology, GOB protection, and intelligent mobile control for superior display performance.
Product Features
-
High Refresh Rate
-
GOB Technology
-
Intelligent Mobile Control
Product Parameters
| Type Number | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension(mm) | 657*2075*490mm | ||
| Pixel Pitch(mm) | 1.86mm | 2mm | 2.5mm |
| LED standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43Scan | 1/40Scan | 1/32Scan |
| Pixel density(dot/m) | 288906 | 202500 | 160000 |
| Max.Power(W) | 600W | ||
| Cabinet Weight(kg) | 48.8kg | ||
| Refreshrate(Hz) | 7680Hz | ||
| Brightness (CD/m) | 600CD/m² | 600CD/m² | 800CD/m² |
Installation Details
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the boxes
- Identify power and signal cables, then insert them into the corresponding box connections
- Connect the main signal and power cables to the computer and controller, then debug the screen for successful operation
Package Details
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
