IP65 Protection Die Cast Aluminum LED Screen Energy Saving Outdoor LED Video Wall
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Numéro de modèle: | P6. Je vous en prie.66 |
Conditions de paiement et expédition:
| Quantité de commande min: | 2 pièces |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Caisse en carton, caisse en bois, Flight Case |
| Délai de livraison: | 30 jours ouvrables après le paiement |
| Conditions de paiement: | L / C, T / T, Western Union, PayPal, Cash |
| Capacité d'approvisionnement: | 500 pièces par semaine |
|
Détail Infomation |
Description de produit

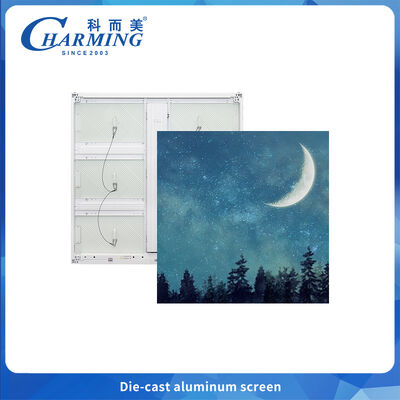

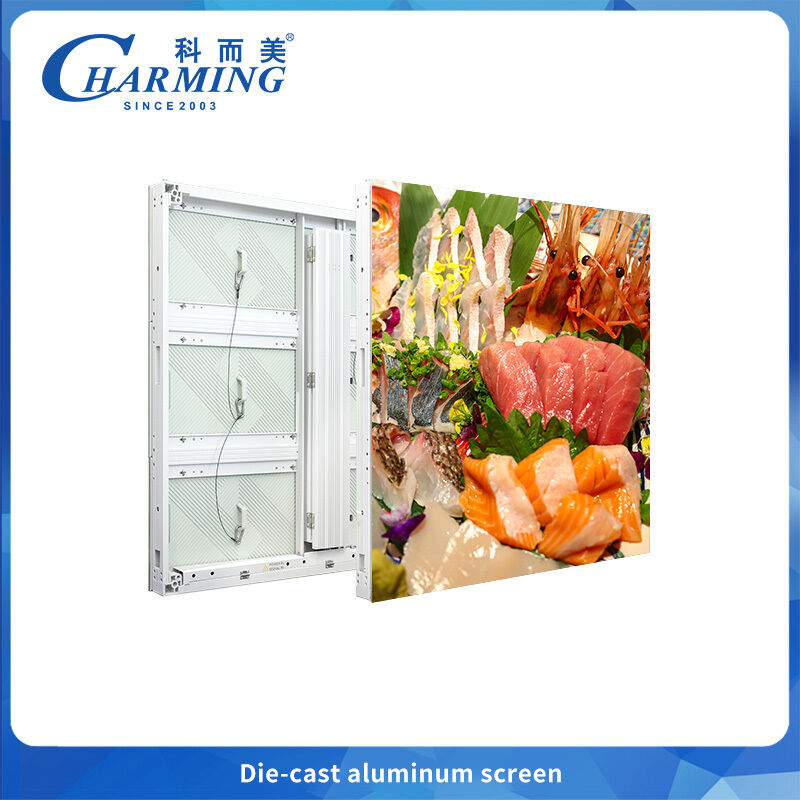

IP65 Protection Outdoor Die Cast Aluminum LED Screen
Commercial plaza naked installation free of air conditioning energy saving choice
Product Features
- High Protection & Flexible Splicing
- Lightweight Design & Full Maintenance
- High Performance & Energy Saving
- High Stability & Security
Product Specifications
| Parameter | Specification |
|---|---|
| Cabinet Size | 960*960mm |
| Pixel Pitch | 6.66mm |
| Pixel Density | 22500 dots/m² |
| LED Size | SMD2727 |
| Scan Type | 1/2 Scan |
| Gray Scale | 14-16 bit |
| Refresh Rate | 1920/7680Hz |
| Screen Brightness | ≥6500 CD/m² |
| Optimal Viewing Distance | ≥8M |
| Screen Resolution | 74*28 |
| Module Size | 480*320mm |
| Viewing Angle | 120° |
| Cabinet Max Power | 900W |
| Cabinet Weight | 25kg |
| IP Grade | IP65 |
| Operating Temperature | -20~+60℃ |
| Operating Humidity | 10%~90%RH |
Installation Details
- Cut the box to required hole size and shape, align and fix the box with quick locks
- Distinguish power lines and signal lines, insert them into corresponding positions in the cabinet
- Connect main signal line and main power line to computer and controller, debug the screen for normal use
