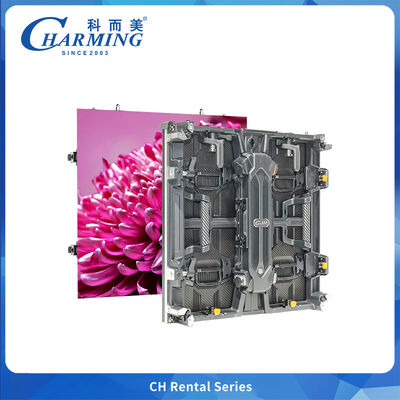

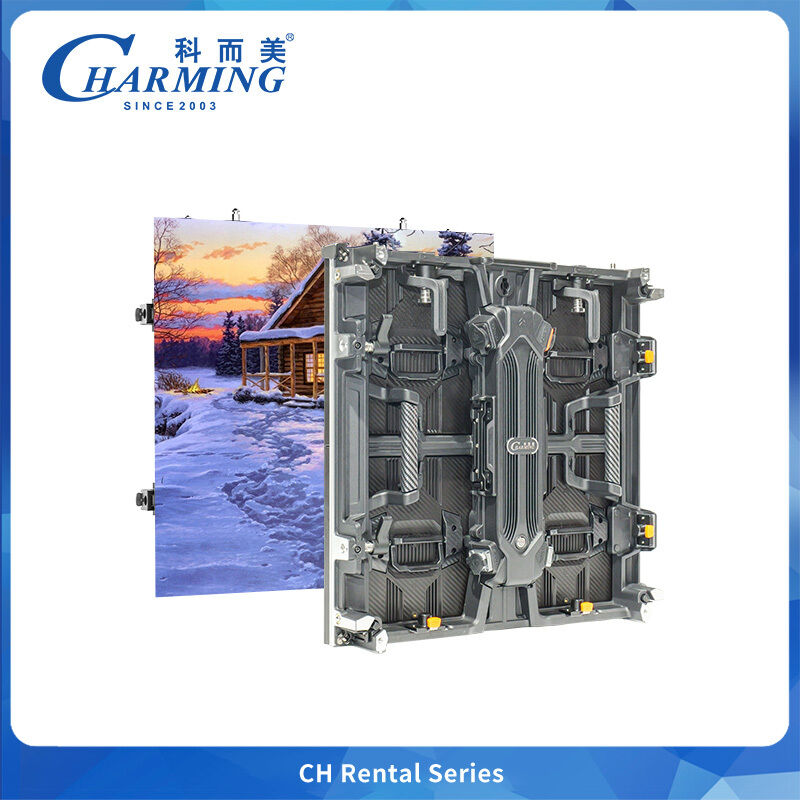

P2.604 CH-H Series Indoor LED Display with One Click Degaussing Front Maintenance and Interlocking Design
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | CHARMING |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Numéro de modèle: | P2.604 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Caisse en carton, caisse en bois, Flight Case |
| Délai de livraison: | 30 jours ouvrables après le paiement |
| Conditions de paiement: | T/T, L/C, Western Union, Paypal, espèces |
| Capacité d'approvisionnement: | 500 pièces par semaine |
|
Détail Infomation |
|||
| Dimension: | 500x500x84mm | Température de travail: | -20 ~ 40 ℃ |
|---|---|---|---|
| Angle de vue: | 140° | Densité de pixels: | 147456 |
| Maximum: | 100W | Durée de vie: | ≥50000 heures |
| Mettre en évidence: | P2.604 indoor LED display with front maintenance,CH-H series LED display with degaussing,rental LED display with interlocking design |
||
Description de produit
P2.604 CH-H Series Indoor LED Display with One Click Degaussing Front Maintenance and Interlocking Design
P2.604 CH-H Series Indoor LED Display with One Click Degaussing Front Maintenance and Interlocking Design
| Pixel Pitch | 2.604mm |
| Brightness | 600-800CD/㎡ |
| Protection level | IP42 |
| Refresh rate | 7680Hz |
| Pixel density | 147456 |
| Maintenance Method | Front maintenance |
Product Features
-
One click degaussing front maintenance: loosen captive screws, screws pop up via spring force for quick module removal.
-
Full cabinet removal support with retractable locating pin allows single cabinet replacement in large displays without removing adjacent cabinets.
-
Semi automatic corner guard with one press ejection for quick removal and installation during service.
-
Module waterproof cover is replaceable and modules are left right interchangeable for flexible inventory management.
-
Cabinet edges widened and thickened for higher strength with maximum hoisting height 15 meters.
